Technical Data

max. tree size (mm) Ø 500 x 500

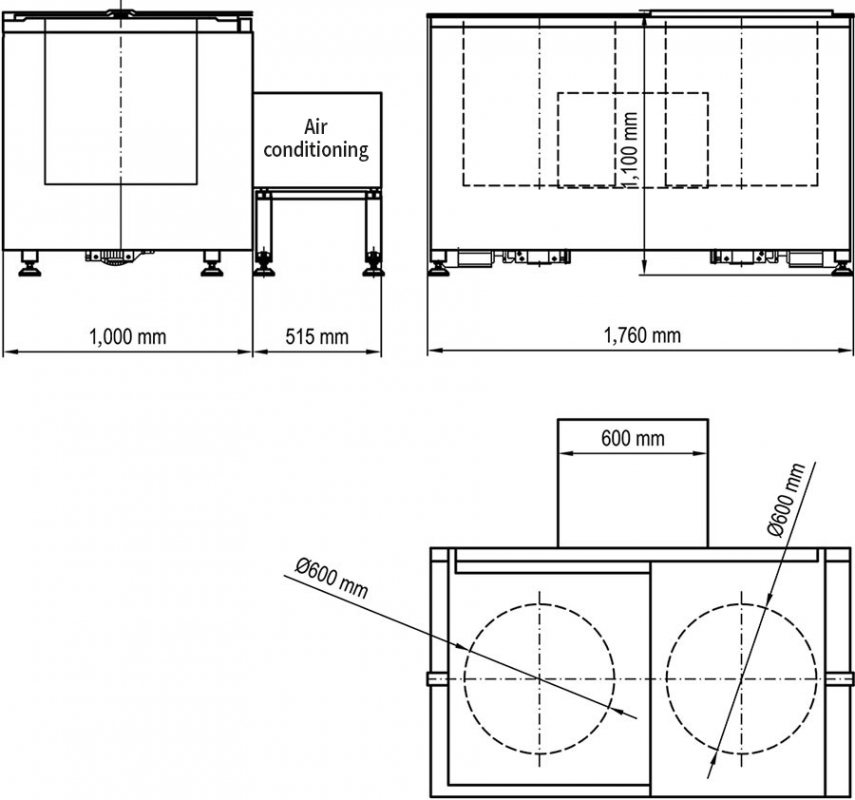

overall dimensions (mm) 1,000 x 1,760 x 1,000
volume of barrels (L) 170
rotation speed of the barrel (UPM) 26
power connection (V/Hz) 400 / 50
consumption / fuse (kW/A) 4 / 16
compressed air connection (bar) 6
weight (empty) (kg) 950



  • Extremely smooth running and tool-free change of barrel
  • Hydrodynamically optimized blade for optimal mixing of slurry
  • Integrated air conditioning of the barrel for non-contact slurry cooling
  • Automatic sliding doors
