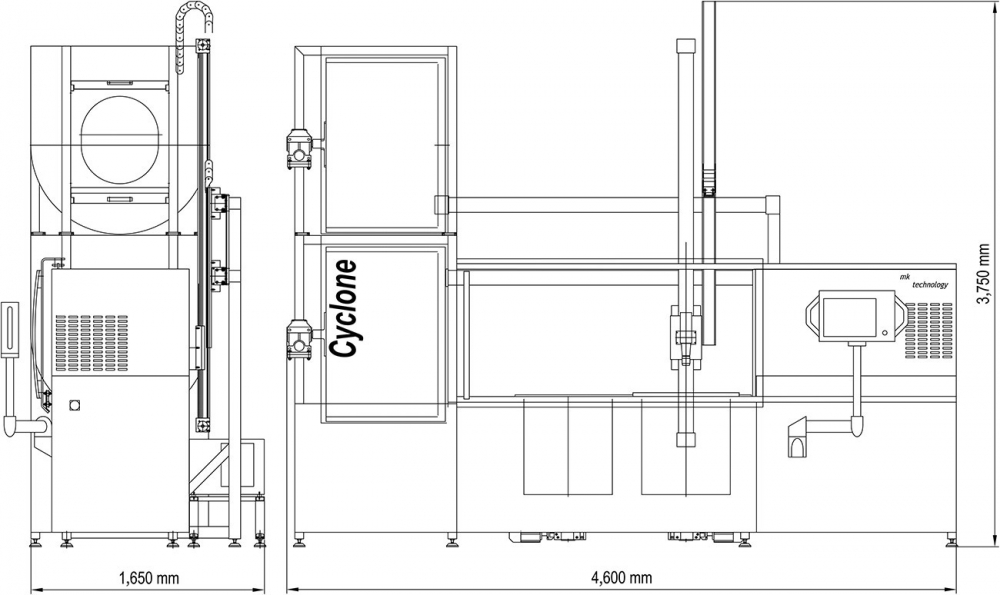

Technical Data



width (mm) 4,600
depth (mm) 1,650
height (mm) 3,750
weight (kg) 2,500
voltage (V/Hz) 400 / 50
power / fuse 15 / 32
max. shell size Ø 500 x 500
max. mould weight 15
slurry tank volume (each) 170
max. sand capacity (each) 35
