Technical Data

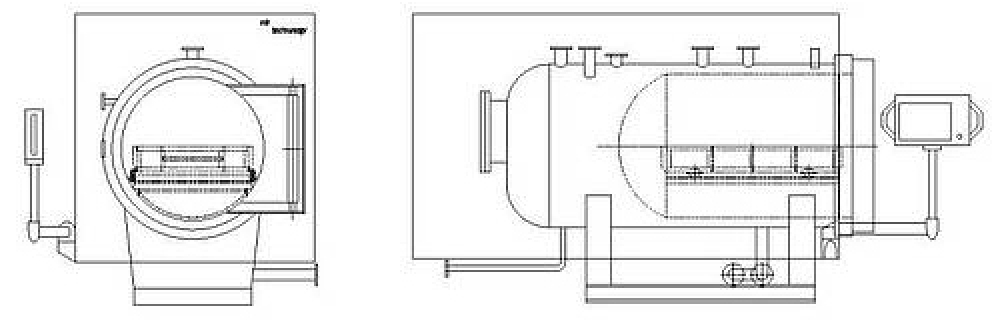

MK Autoclave MK A-100
chamber volume (l) 1,200
chamber internal size (mm) Ø 1,000 x 1,200
useable workspace (WxDxH) (mm) 750 x 1,150 x 600
overall size (WxDxH) (mm) 1,800 x 3,150 x 2,030
design pressure (steam) (bar) 13.0
work pressure (steam) (bar) 7.0 - 12.0
pressure balance time (sec) 6
work temperature (°C) 175 - 190
voltage (V / Ph / Hz) 400 / 3 / 50-60
power consumption (kW) 96
total weight (kg) 3,800



MK Autoclave MK A-120
chamber volume (l) 2,050
chamber internal size (mm) Ø 1,200 x 1,400
useable workspace (WxDxH) (mm) 880 x 1,300 x 650
overall size (WxDxH) (mm) 2,100 x 3,700 x 2,250
design pressure (steam) (bar) 13.0
work pressure (steam) (bar) 7.0 - 12.0
pressure balance time (sec) 6
work temperature (°C) 175 - 190
voltage (V / Ph / Hz) 400 / 3 / 50-60
power consumption (kW) 120
total weight (kg) 5,580



MK Autoclave MK A-150
chamber volume (l) 3,670
chamber internal size (mm) Ø 1,500 x 1,600
useable workspace (WxDxH) (mm) 1,100 x 1,500 x 850
overall size (WxDxH) (mm) 2,450 x 4,100 x 2,590
design pressure (steam) (bar) 13.0
work pressure (steam) (bar) 7.0 - 12.0
pressure balance time (sec) 8
work temperature (°C) 175 - 190
voltage (V / Ph / Hz) 400 / 3 / 50-60
power consumption (kW) 150
total weight (kg) 8,200



MK Autoclave MK A-180
chamber volume (l) 5,470
chamber internal size (mm) Ø 1,800 x 1,600
useable workspace (WxDxH) (mm) 1,350 x 1,550 x 1,050
overall size (WxDxH) (mm) 2,850 x 4,450 x 2,995
design pressure (steam) (bar) 13.0
work pressure (steam) (bar) 7.0 - 12.0
pressure balance time (sec) 8
work temperature (°C) 175 - 190
voltage (V / Ph / Hz) 400 / 3 / 50-60
power consumption (kW) 180
total weight (kg) 12,100
