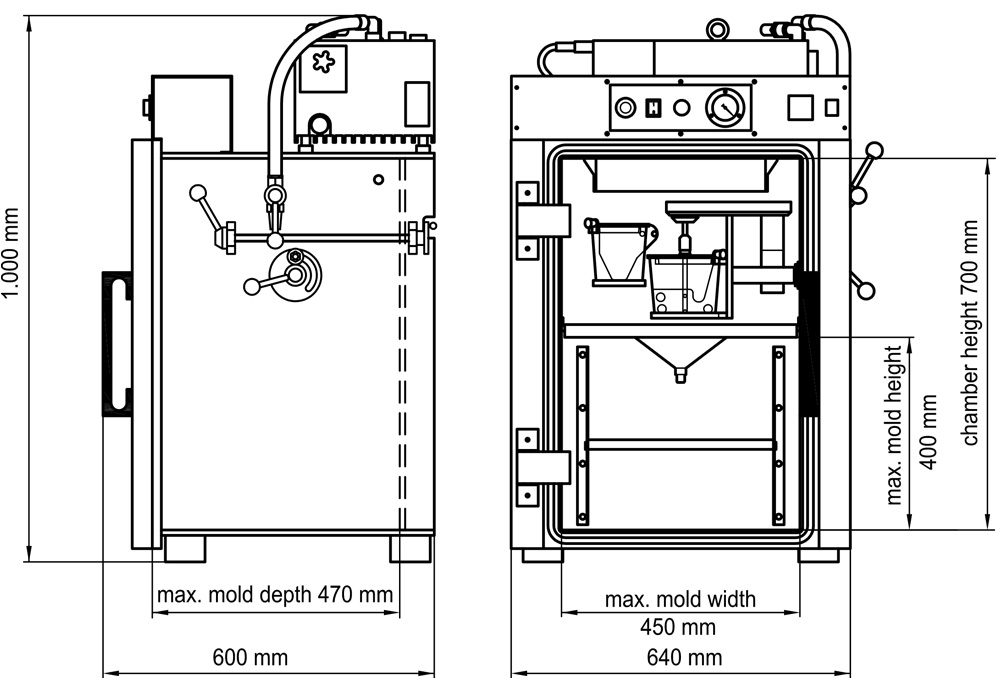

Technical Data

MK Mini

max. cast weight (g) 1,400
max. mould size (B x T x H) (mm) 450 x 470 x 400
chamber interior size (B x T x H) 450 x 470 x 700
chamber overall size (B x T x H)  640 x 600 x 1,000
vacuum power of the pump m³/h 25/≤0.5 mbar
evacuation time 1,013 -> 0 hPa  (min) 3
leak time 8 (sec)  25
voltage (V/Hz) 230 / 50
power (kW) 0.9
weight (kg) 250
