Technical Data

System 1

max. casting weight (g) 1,400

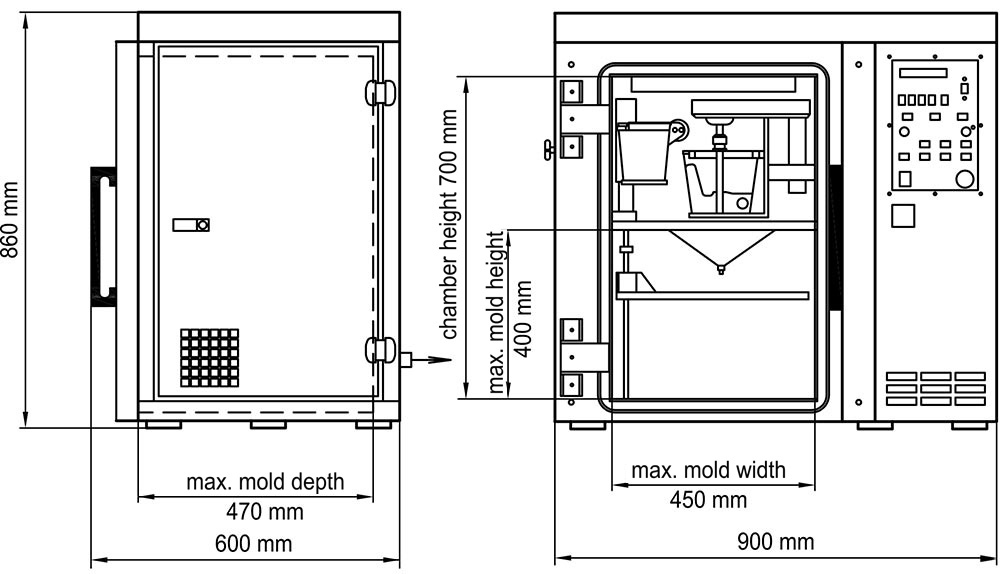

max. mould size (W x D x H) (mm) 450 x 470 x 400
chamber interiour size (W x D x H) 450 x 470 x 700
chamber overall size (W x D x H)  900 x 600 x 860
vacuum power of the pump m³/h 25/≤0.5 mbar
evacuation time 1,013 -> 0 hPa  (min) 3
leak time 8 (sec)  35
voltage (V/Hz) 230 / 50
power consumption (kW) 1.2
weight (kg) 330
