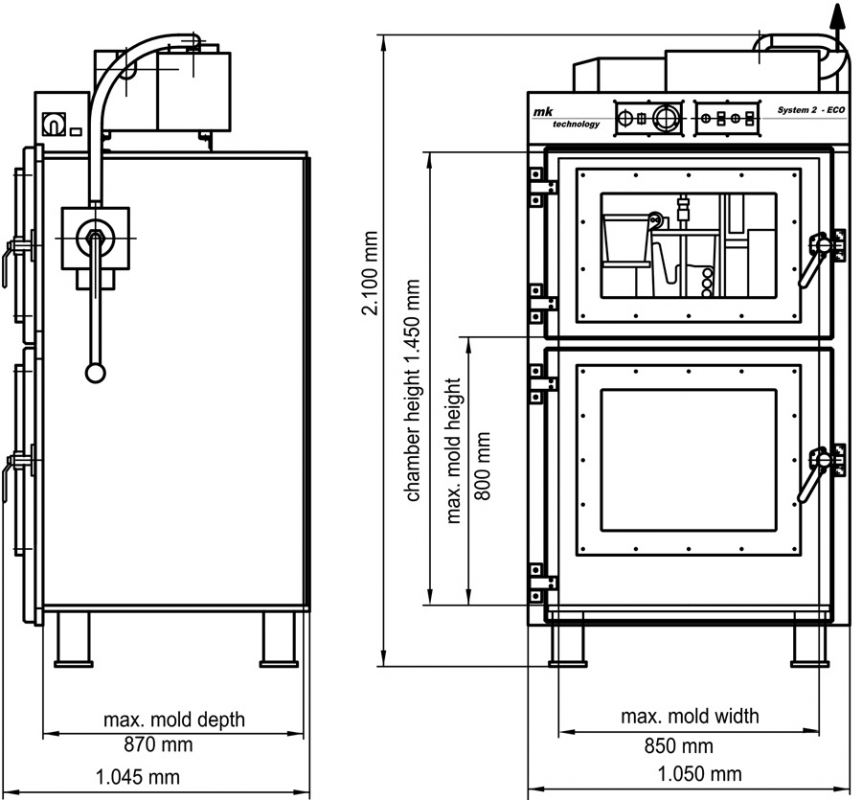

Technical Data

System 2 ECO

max. casting weight (g) 6,000
max. mould size (W x D x H) (mm) 850 x 870 x 800
chamber interiour size (W x D x H) 850 x 870 x 1,450
chamber overall size (W x D x H) 1,050 x 1,045 x 2,100
vacuum power of the pump m³/h 94/≤0.5 mbar
evacuation time 1,013 -> 0 hPa  (min) 4
leak time 8 (sec)  25
voltage (V/Hz) 400 / 50
power supply (kW) 3.0
weight (kg) 1,350
