Technical Data

System 2 XL

max. casting weight (g) 6,000

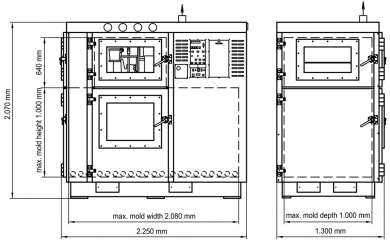

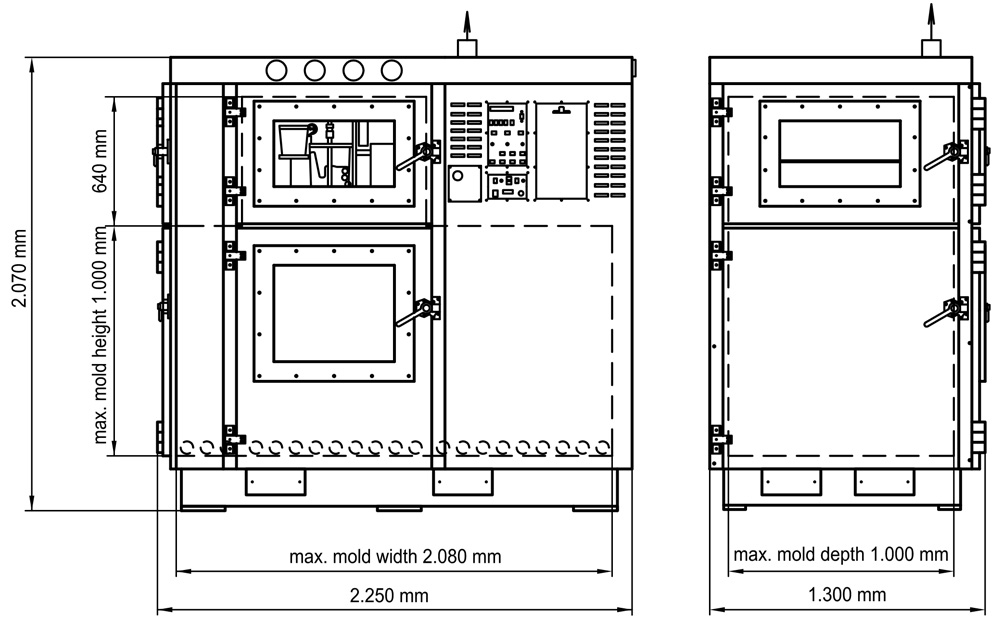

max. mould size (W x D x H) (mm) 2,080 x 1,000 x 1,000
pre-evacuation chamber (W x D x H) (mm) 1,000 x 300 x 640 with extra compartment
chamber interiour size (W x D x H) 2,080 x 1,000 x 1,000
800 x 1,000 x 540
chamber overall size (W x D x H) 2,250 x 1,300 x 2,070
vacuum power of the pump m³/h 270/≤0.7 mbar
evacuation time 1.013 -> 0 hPa  (min) 4
leak time 8 (sec)  45
voltage (V/Hz) 400 / 50
power consumption (kW) 5.5
weight (kg) 3,500
