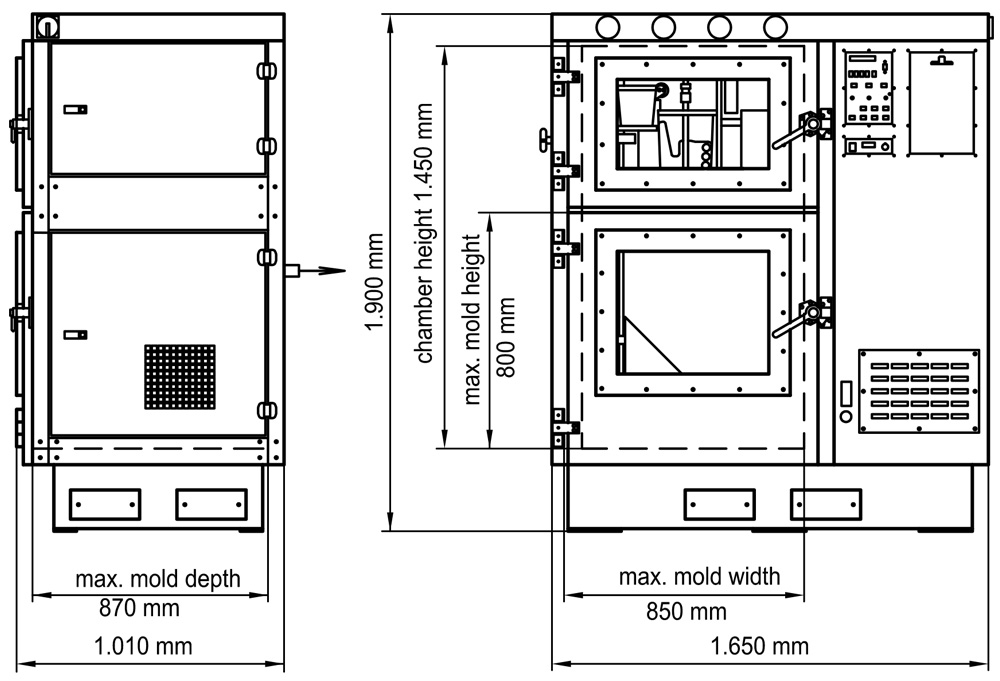

Details of vacuum chamber system 2

Technical Data

System 2

max. casting weight (g) 1,400
max. mould size (W x D x H) (mm) 850 x 870 x 800
chamber interior size (W x D x H) 850 x 870 x 1,450
chamber overall size (W x D x H) 1,650 x 1,010 x 1,900
vacuum power of the pump m³/h 180/≤0.7 mbar
evacuation time 1,013 -> 0 hPa  (min) 3
leak time 8 (sec)  25
voltage (V/Hz) 400 / 50
power consumption (kW) 4.5
weight (kg) 1,925
