Technical Data
| Left | Right | Both | ||
| max. casting weight | (g) | 6,000 | ||

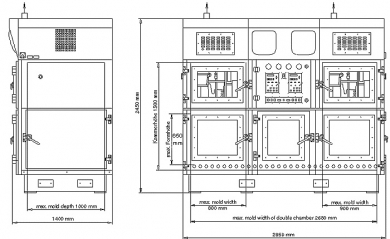

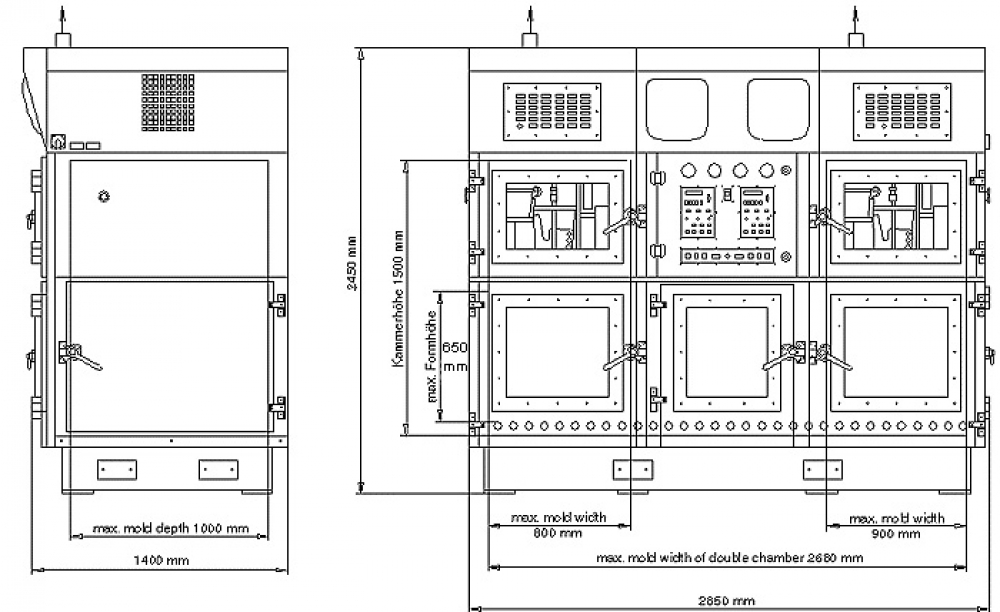

| max. mould size (W x D x H) |
(mm) | 800 x 1,000 x 800 | 900 x 1,000 x 770 | 2,680 x 1,000 x 650 |
| chamber interiour size (W x D x H) | (mm) | 800 x 1,150 x 1,500 |
900 x 1,150 x 1,500 |
|
| chamber overall size (W x D x H) | (mm) | 2,850 x 1,400 x 2,450 | ||
| vacuum power of the pump | (m³/h) | 270 / ≤0.7 mbar | 280 / ≤0.7 mbar | 560 / ≤0.7 mbar |
| evacuation time 1,013 -> 0 hPa |
(min) | 2.5 | 3 | 3.5 |
| leak time | (sec) | 20 | 20 | 30 |
| voltage | (V/Hz) | 400 / 50 | 400 / 50 | 400 / 50 |
| power supply | (kW) | 5.5 | 5.5 | 11.0 |
| weight | (kg) | 5,500 |
