System 3

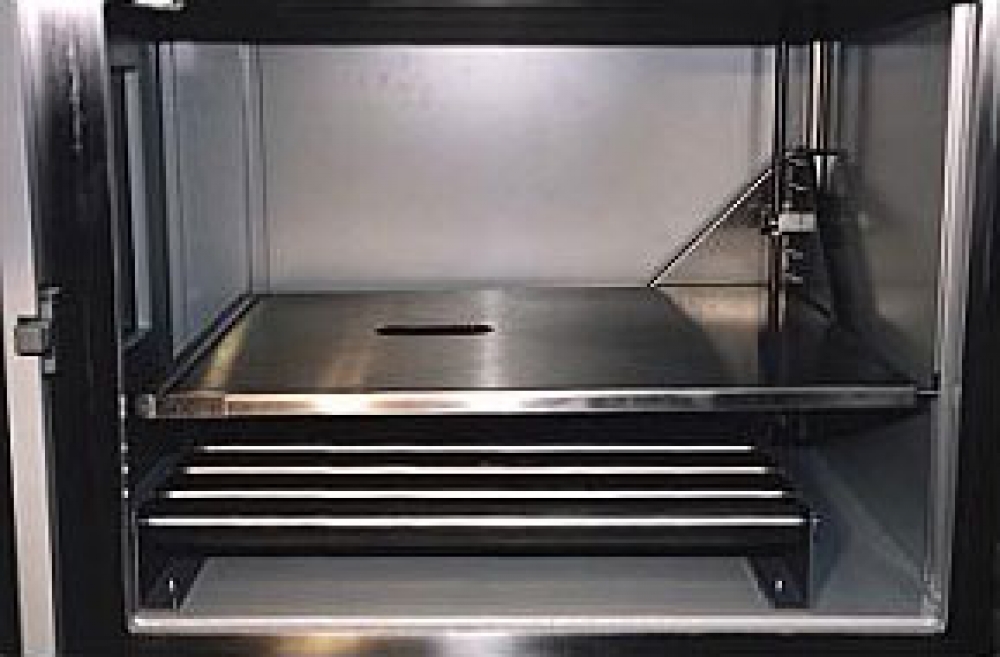

This system actually contains two systems: two Systems 2, to be precise. Each of these systems can be operated autonomously and independent from the other one in order to mould parts up to the size of a television casing. If the size of one chamber is not big enough, both units can be combined automatically to a big chamber by just one touch of a button.

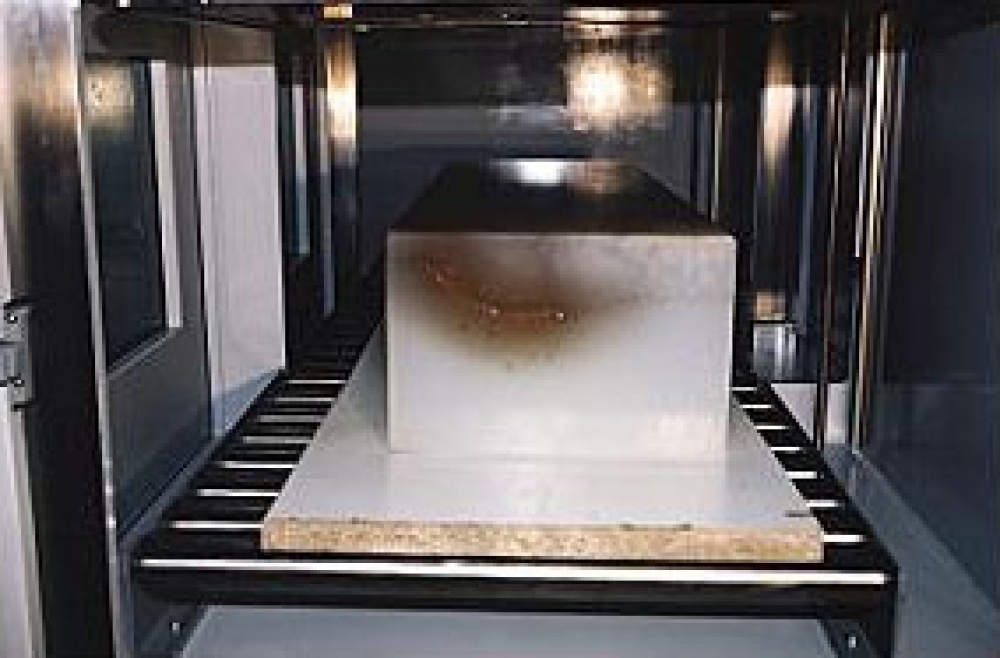

Parts up to a length of 2.5 meters and 10 kg overall weight can be cast in this chamber. The system is charge though the side door.

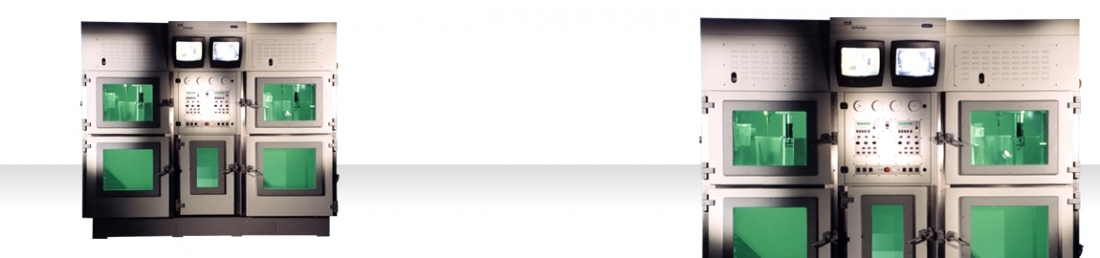

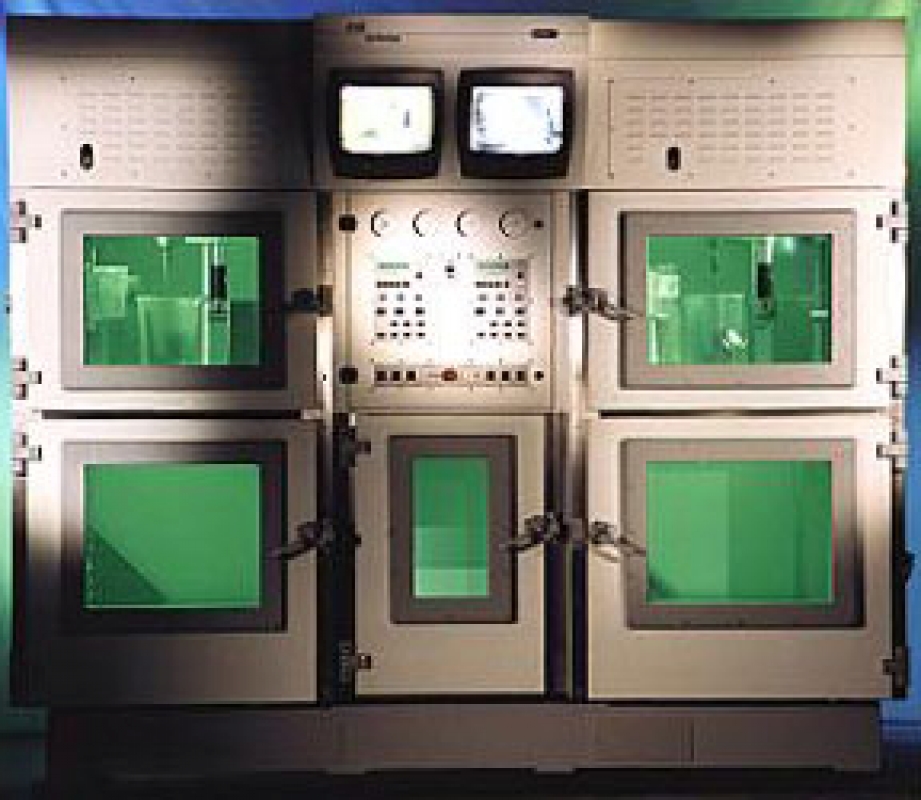

MK System III - the multifunctional system

Maximum casting weight:
12,000 g

Maximum mould size:
2,680 x 1,000 x 650 mm

  • Largest serial vacuum casting system in the world
  • 2 independent chambers in one system
  • Free adjustable video control system

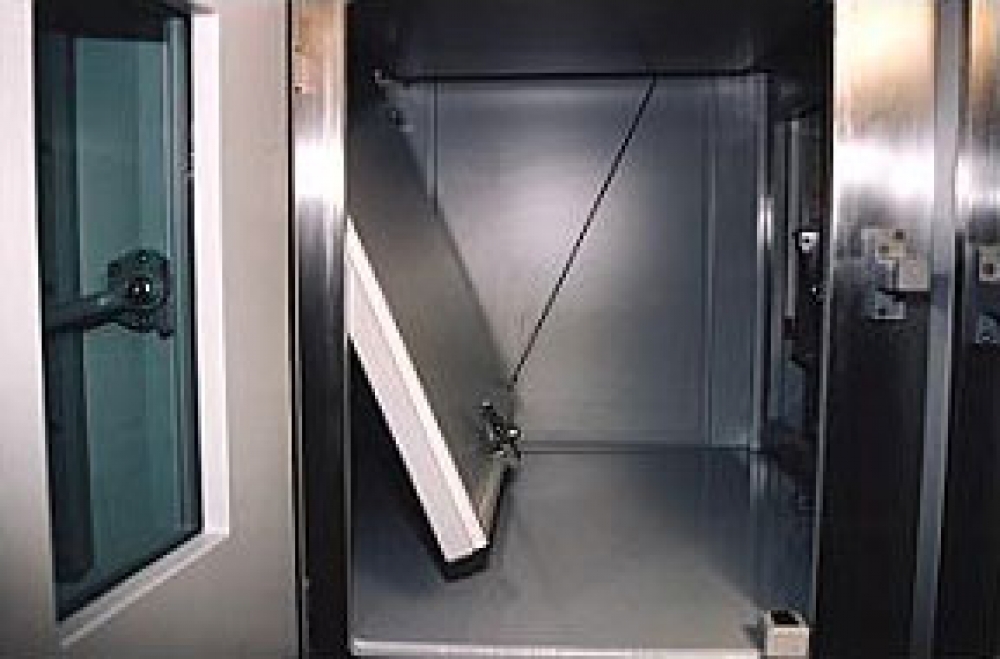

  • Automatic opening of the flap to combine both chambers
  • Optional: Differential pressure system in left chamber


Here you will find the appropriate ovens.

Differential Pressure System

If required, MK equips all chambers from System 1 upwards with the so-called Differential Pressure System.

Roller Conveyor

We recommend the application of the roller conveyor for the transport of medium-sized and large moulds, as weight can be up to several hundred kilos.

MK Tool Set
